Dell PowerEdge R930 No-Power Fault Diagnosis and System Board Replacement

Dell PowerEdge R930 No-Power Fault Diagnosis and System Board Replacement

A Dell PowerEdge R930 showed no response after the power button was pressed, while the front panel reported a system board error. A controlled minimum-configuration diagnosis confirmed the motherboard as the real fault, and replacing it restored the server without changing the customer’s original CPUs, memory, drives, RAID controller, power supplies, data or software environment.

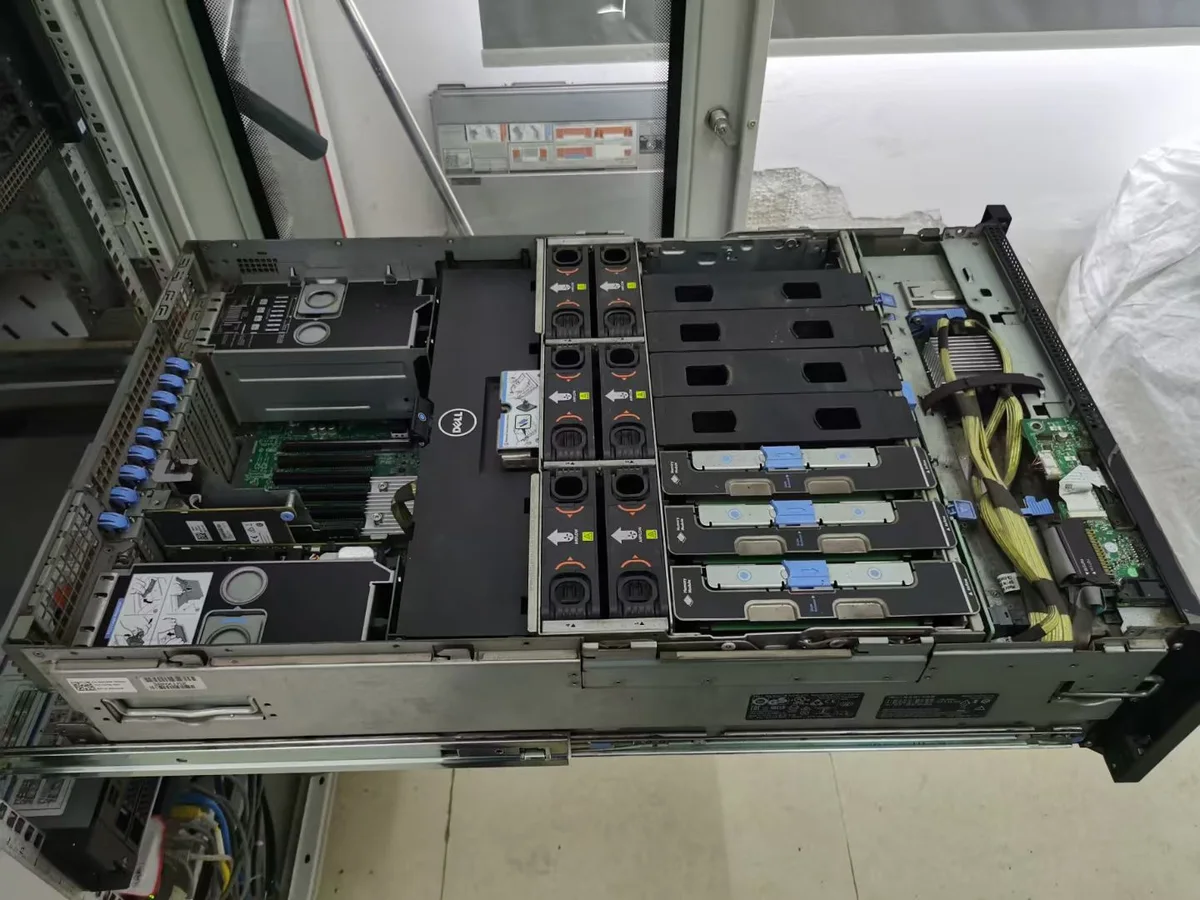

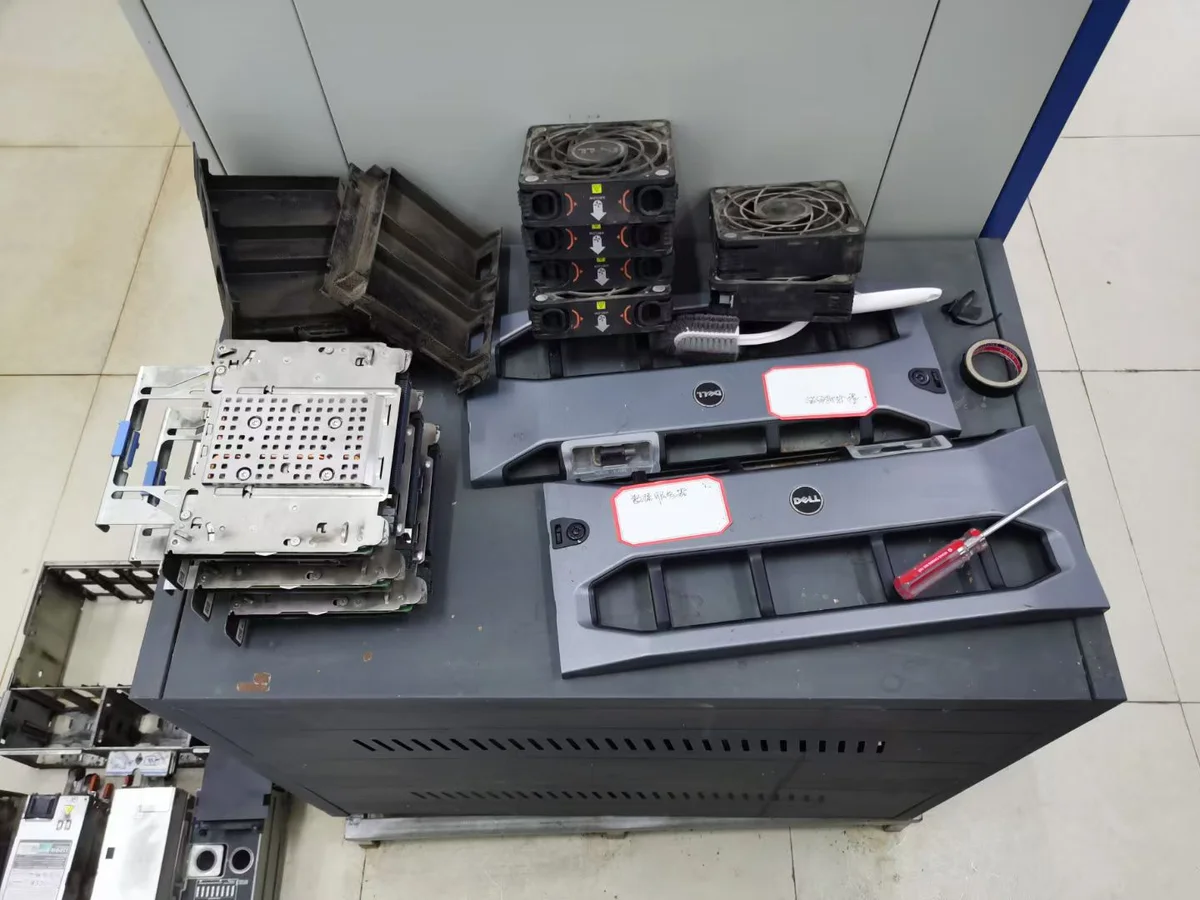

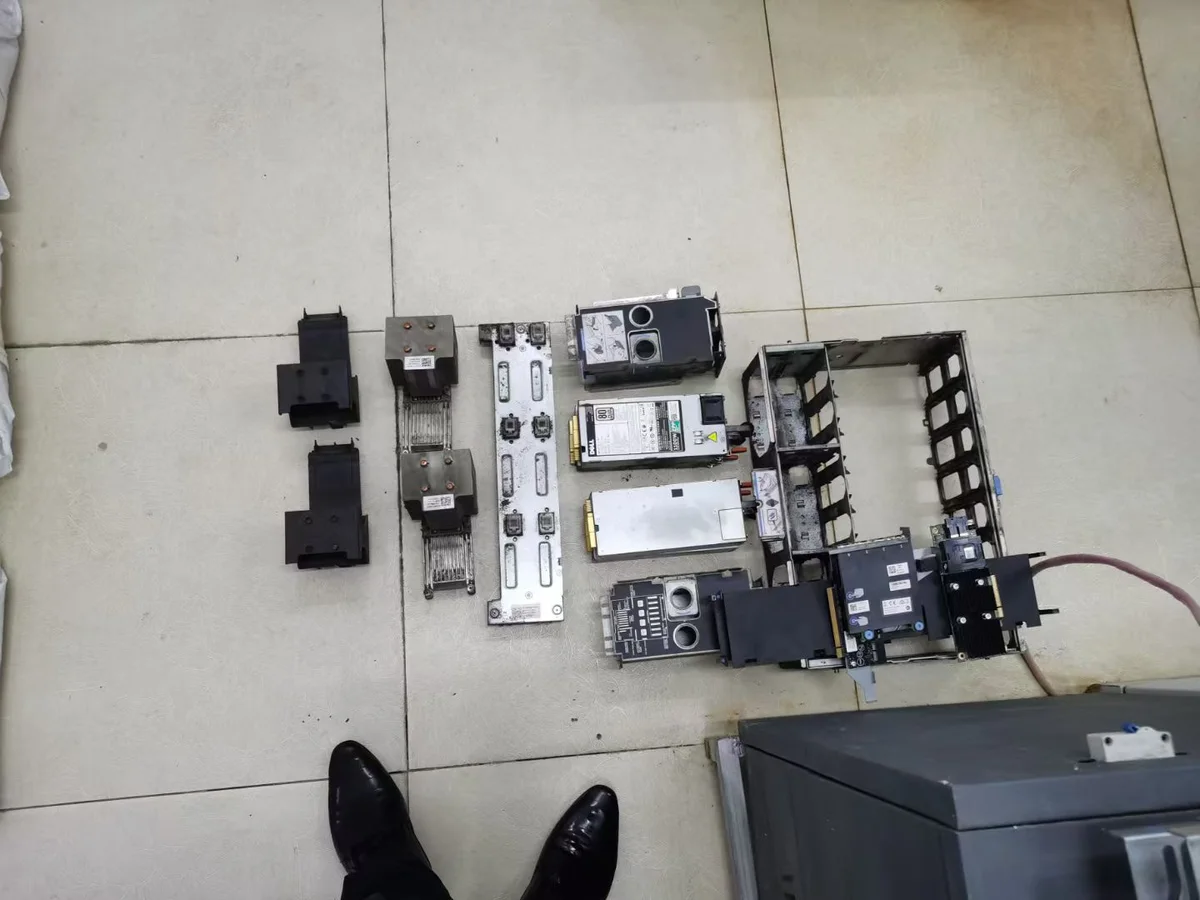

The diagnosis began by removing the CPUs, memory, hard drives, RAID controller, power supplies and other removable components. The server was then rebuilt in a minimum configuration with one CPU, one memory module and one power supply, but it still showed no response to the power button.

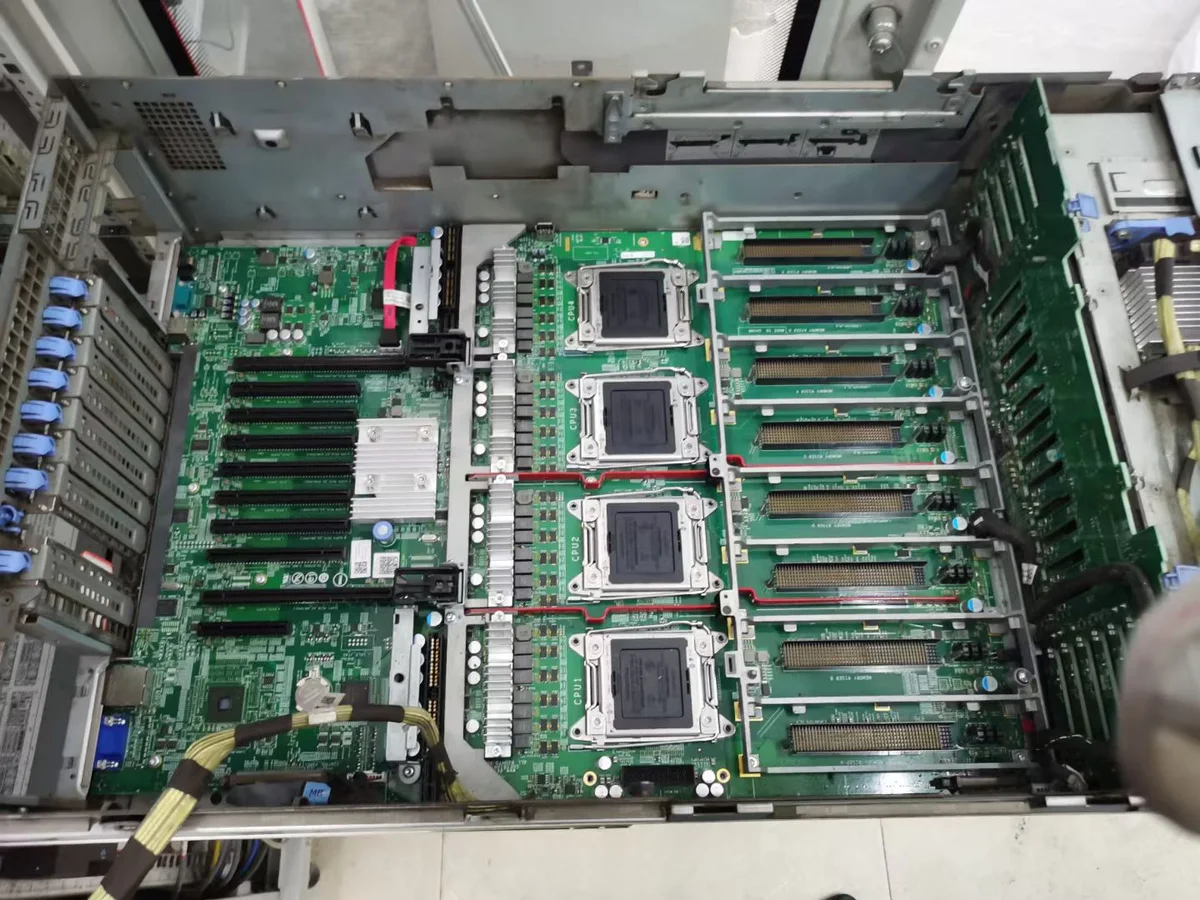

To avoid replacing the wrong part, known-good CPUs, memory modules and power supplies were cross-tested repeatedly. The hard drives, RAID controller and other major removable components were also checked and ruled out. After every replaceable component had been eliminated as the source of the fault, the system board was confirmed as the failure point.

• Server model: Dell PowerEdge R930 four-socket rack server
• Fault symptoms: no response to the power button and a front-panel system board error
• Diagnostic method: minimum-configuration testing and repeated cross-testing with known-good components

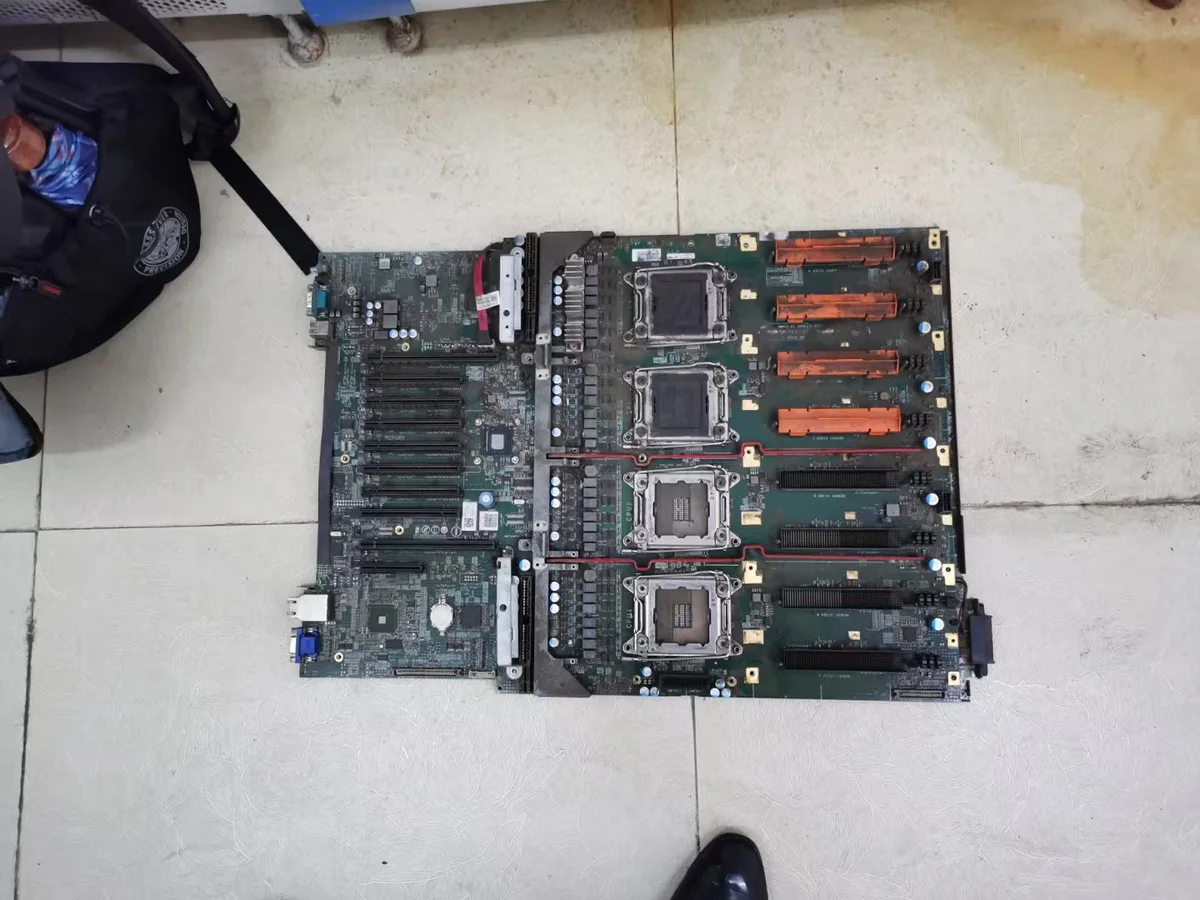

• Confirmed cause: failed system board / motherboard

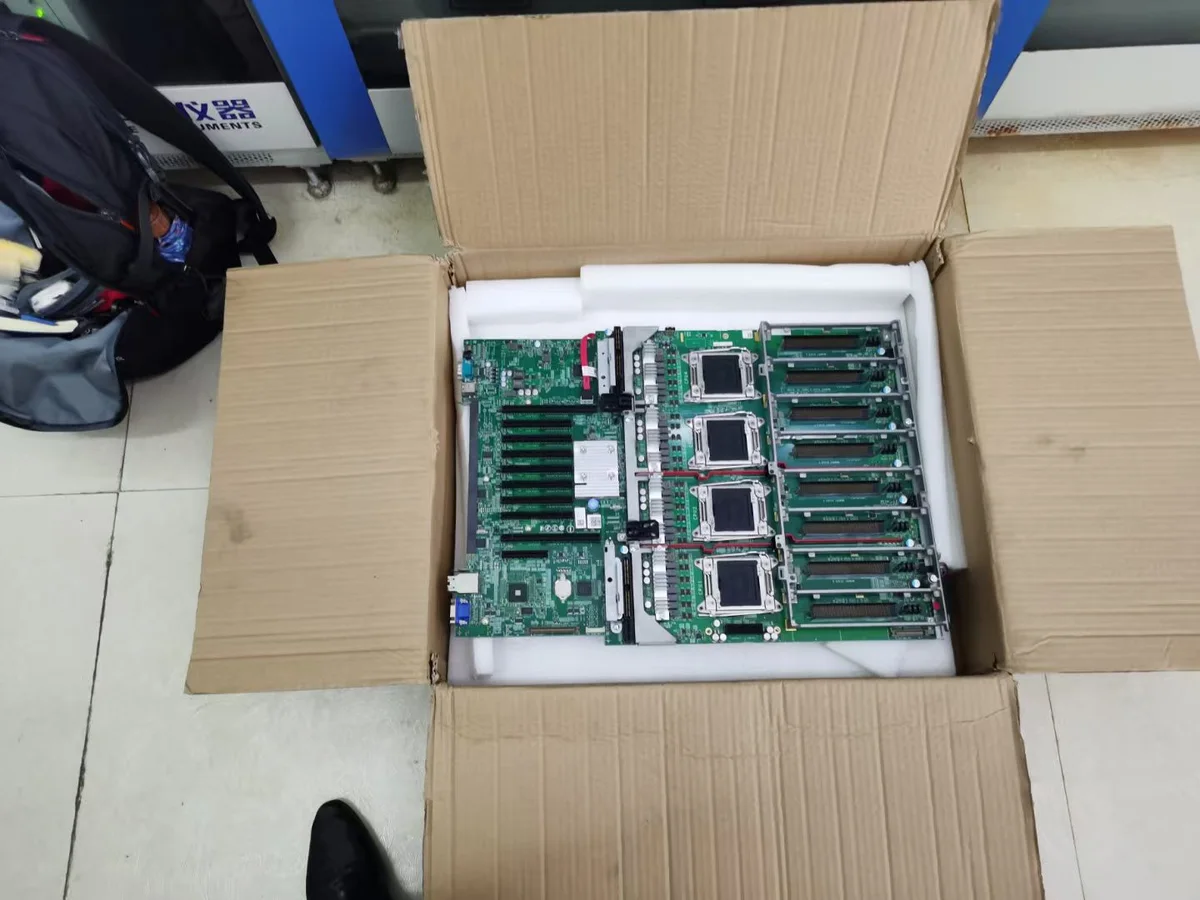

• Repair action: replace the system board and reinstall all original CPUs, memory, drives, RAID controller and power supplies

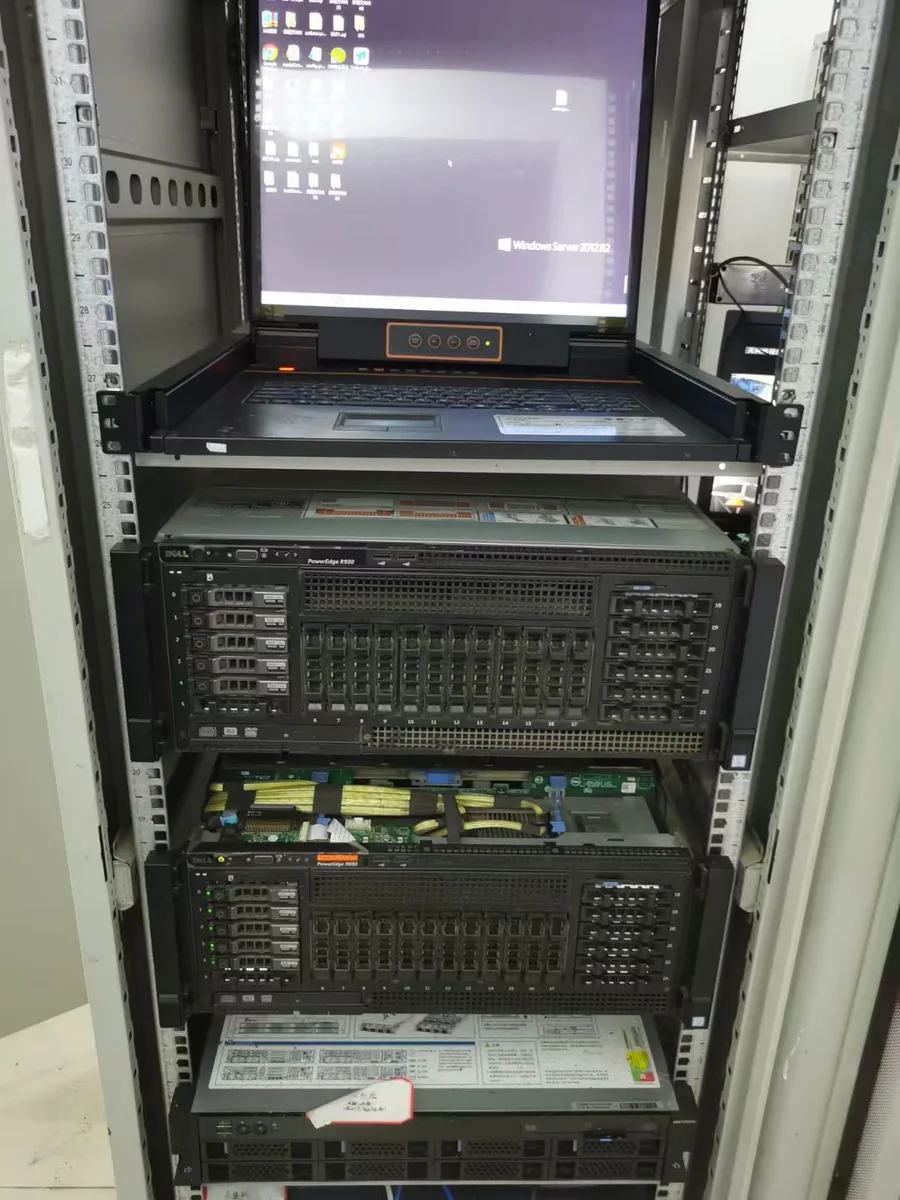

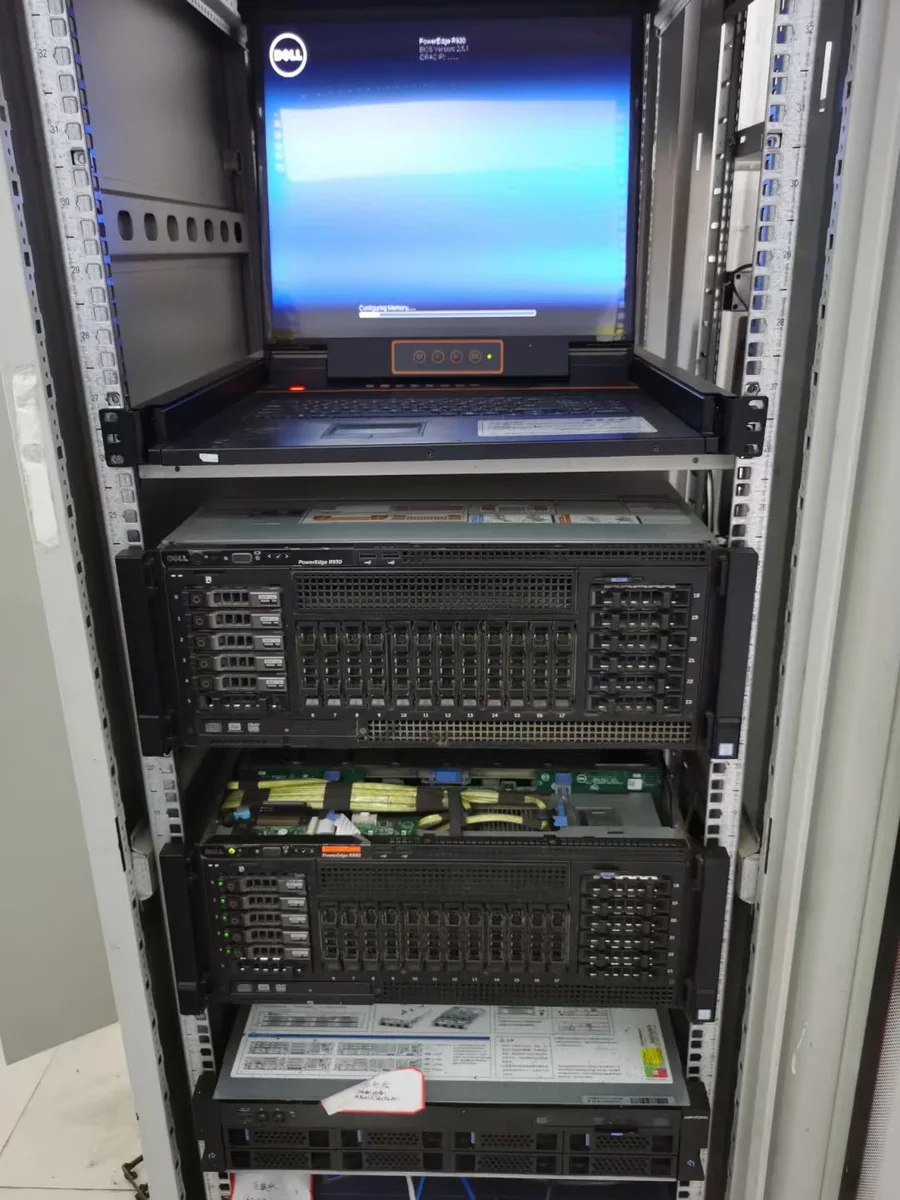

• Verification: normal power-on and POST, successful operating-system startup, healthy RAID configuration, normal network connectivity and working applications
• Customer value: the original data, RAID layout and software environment were preserved while unnecessary component replacement was avoided

The critical part of this repair was not simply fitting a replacement board. It was identifying the actual failure through controlled testing, so that only the defective component was replaced and the customer’s existing hardware configuration and business environment could remain unchanged.
